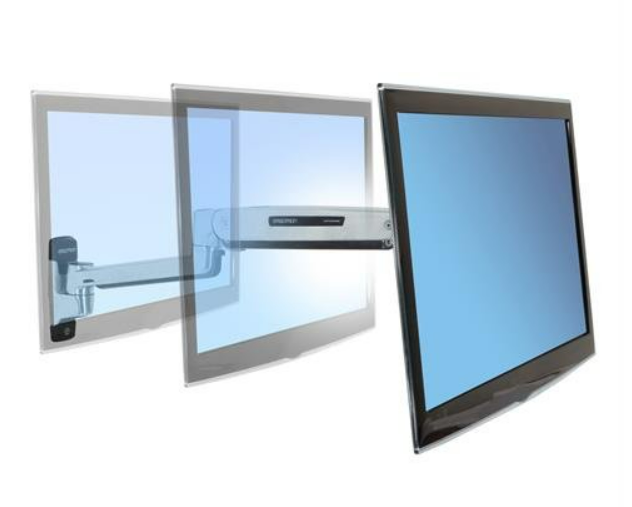

LX HD Sit-Stand Wall Arm

Attribute:

45-383-026

Share

LX HD Sit-Stand Wall Arm
Capacity 14–30 lbs / 6.4–13.6 kg


Work at your best sitting or standing with the LX Sit-Stand Wall Arm. The wall attachment keeps your space open for reviewing drafts or for stand-up meetings. Easily place screens or digital signage where you need it for each project, and then reclaim even more work area by folding the arm and pushing it aside during a much-needed screen break. Keep your technology on lock with anchor holes in the base.



Specification

  • Description: LX HD Sit-Stand Wall Mount LCD Arm (polished aluminum) Includes LX HD sit-stand arm, extension, wall-mount base, VESA brackets
  • Weight Capacity:  6.3 to 13.6 kg. Monitor depth may affect weight capacity
  • Monitor tilts 75° up and 5° down
  • Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
  • Rotation Stop on wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall
  • Patented Constant Force™ motion technology provides premium ease-of-use display adjustment
  • Cable management feature routes cables under the arm, out of the wayArm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
  • Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)
  • Product Weight: 6.1 kg
  • Shipping Dimensions: 22" x 11" x 7.5" (56 x 28 x 19 cm)
  • Shipping Weight: 6.1 kg
  • Cable management clips on the under side of the arm route and hide cords
  • Base includes theft-deterrent anchor holes for cable locks
  • This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
  • Warranty: Ten years
